Product Introduction
IHLP6767DZER220M11
- Part Number
- IHLP6767DZER220M11
- Manufacturer/Brand
- Vishay Dale
- Description
- FIXED IND 22UH 7.2A 46.97 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- IHLP-6767DZ-11
- Quantity
- 4935pcs Stock Available.

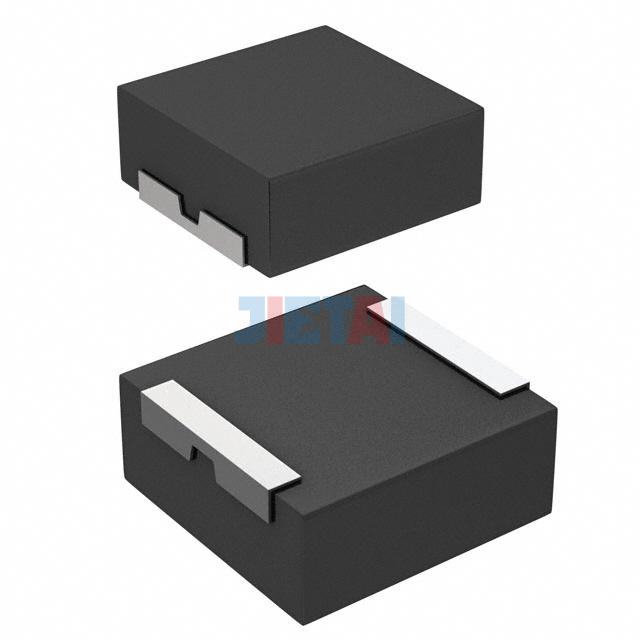

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | IHLP6767DZER220M11 |
| Datasheet | IHLP6767DZER220M11 datasheet |
| Description | FIXED IND 22UH 7.2A 46.97 MOHM |
| Manufacturer | Vishay Dale |
| Series | IHLP-6767DZ-11 |
| Part Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 22µH |
| Tolerance | ±20% |
| Current Rating | 7.2A |
| Current - Saturation | 6.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 46.97 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.675" L x 0.675" W (17.15mm x 17.15mm) |
| Height - Seated (Max) | 0.157" (4.00mm) |
