Product Introduction
LSS-120-02-F-DV-A-K-TR
- Part Number
- LSS-120-02-F-DV-A-K-TR
- Manufacturer/Brand
- Samtec Inc.
- Description
- .635MM TERMINAL/SOCKET COMBO
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Razor Beam™ LSS
- Quantity
- 1227pcs Stock Available.

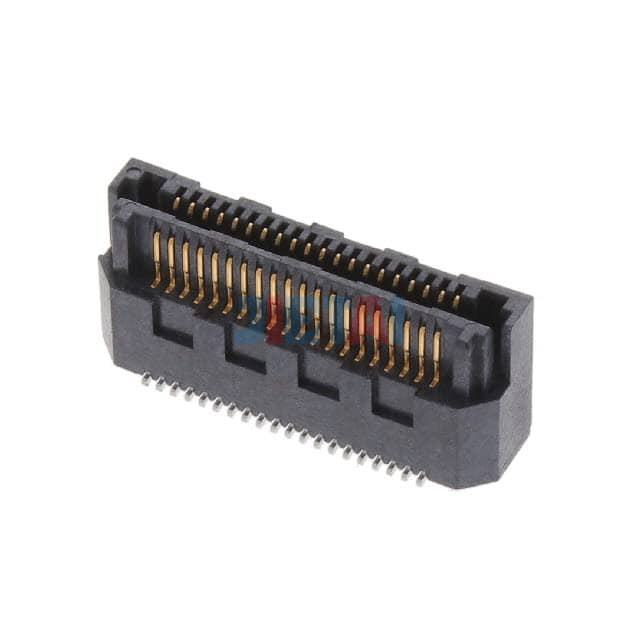

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LSS-120-02-F-DV-A-K-TR |
| Datasheet | LSS-120-02-F-DV-A-K-TR datasheet |
| Description | .635MM TERMINAL/SOCKET COMBO |
| Manufacturer | Samtec Inc. |
| Series | Razor Beam™ LSS |
| Part Status | Active |
| Connector Type | Self Mating, Non-Gendered |
| Number of Positions | 40 |
| Pitch | 0.025" (0.64mm) |
| Number of Rows | 2 |
| Mounting Type | Surface Mount |
| Features | Board Guide, Pick and Place |
| Contact Finish | Gold |
| Contact Finish Thickness | 3.00µin (0.076µm) |
| Mated Stacking Heights | 9mm, 10mm, 12mm |
| Height Above Board | 0.287" (7.30mm) |
