Product Introduction
SMDA15CN-5.TBT
- Part Number
- SMDA15CN-5.TBT
- Manufacturer/Brand
- Semtech Corporation
- Description
- TVS DIODE 15V 30V 8SO
- Category
- TVS - Diodes
- RoHs Status
- Lead free / RoHS Compliant
- Series
- SMDACN-5
- Quantity
- 687pcs Stock Available.

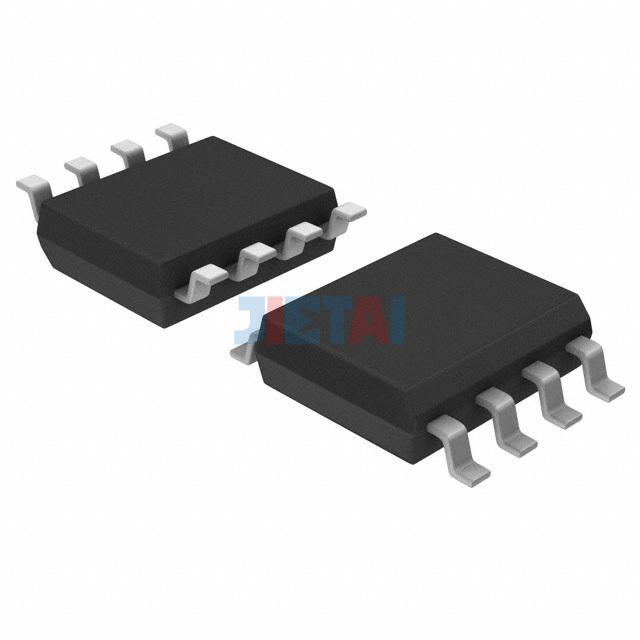

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | SMDA15CN-5.TBT |
| Datasheet | SMDA15CN-5.TBT datasheet |
| Description | TVS DIODE 15V 30V 8SO |
| Manufacturer | Semtech Corporation |
| Series | SMDACN-5 |
| Part Status | Active |
| Type | Zener |
| Unidirectional Channels | - |
| Bidirectional Channels | 5 |
| Voltage - Reverse Standoff (Typ) | 15V (Max) |
| Voltage - Breakdown (Min) | 16.7V |
| Voltage - Clamping (Max) @ Ipp | 30V |
| Current - Peak Pulse (10/1000µs) | 10A (8/20µs) |
| Power - Peak Pulse | 300W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 75pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
