Product Introduction
APT10090BLLG
- Part Number
- APT10090BLLG
- Manufacturer/Brand
- Microsemi Corporation
- Description
- MOSFET N-CH 1000V 12A TO-247
- Category
- Transistors - FETs, MOSFETs - Single
- RoHs Status
- Lead free / RoHS Compliant
- Series
- POWER MOS 7®
- Quantity
- 236pcs Stock Available.

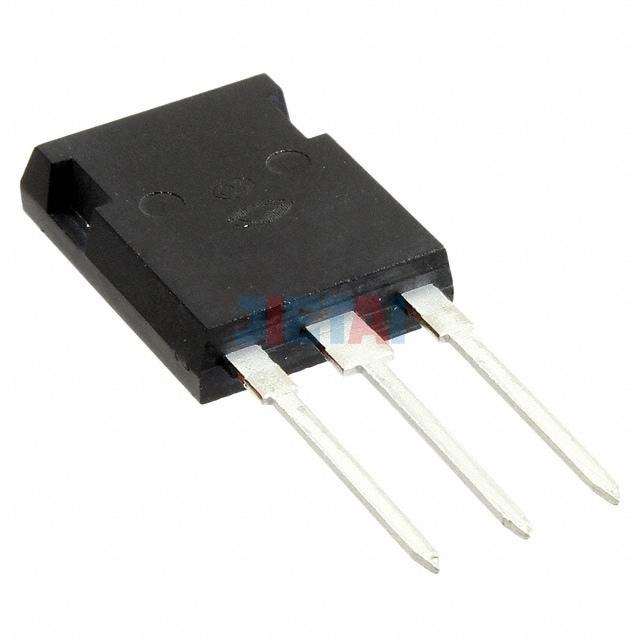

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | APT10090BLLG |
| Datasheet | APT10090BLLG datasheet |
| Description | MOSFET N-CH 1000V 12A TO-247 |
| Manufacturer | Microsemi Corporation |
| Series | POWER MOS 7® |
| Part Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1000V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 950 mOhm @ 6A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 71nC @ 10V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1969pF @ 25V |
| FET Feature | - |
| Power Dissipation (Max) | 298W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247 [B] |
| Package / Case | TO-247-3 |
