Product Introduction
C855-2B4R-54
- Part Number
- C855-2B4R-54
- Manufacturer/Brand
- Bel Fuse Inc.
- Description
- CONN MAGJACK 8PORT 1000 BASE-T
- RoHs Status
- Lead free / RoHS Compliant
- Series
- MagJack® Compressor
- Quantity
- 14pcs Stock Available.

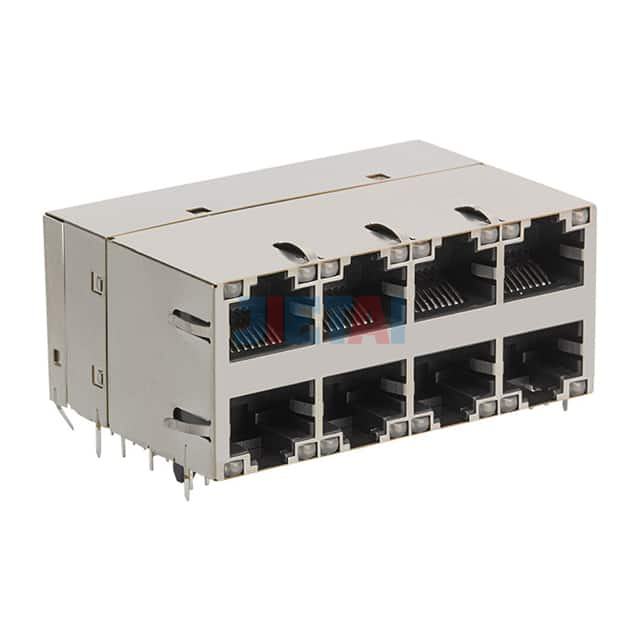

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | C855-2B4R-54 |
| Datasheet | C855-2B4R-54 datasheet |
| Description | CONN MAGJACK 8PORT 1000 BASE-T |
| Manufacturer | Bel Fuse Inc. |
| Series | MagJack® Compressor |
| Part Status | Active |
| Connector Type | RJ45 |
| Number of Ports | 8 |
| Number of Rows | 2 |
| Applications | 10/100/1000 Base-T, AutoMDIX |
| Mounting Type | Board Edge, Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Height Above Board | 0.829" (21.06mm) |
| LED Color | Orange, Green - Orange, Green |
| Number of Cores per Jack | 8 |
| Shielding | Shielded, EMI Finger |
| Features | Board Guide |
| Tab Direction | Up and Down |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Operating Temperature | 0°C ~ 70°C |
