Product Introduction
MC9S12XET256CAG
- Part Number
- MC9S12XET256CAG
- Manufacturer/Brand
- NXP USA Inc.
- Description
- IC MCU 16BIT 256KB FLASH 144LQFP
- Category
- Embedded - Microcontrollers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- HCS12X
- Quantity
- 378pcs Stock Available.

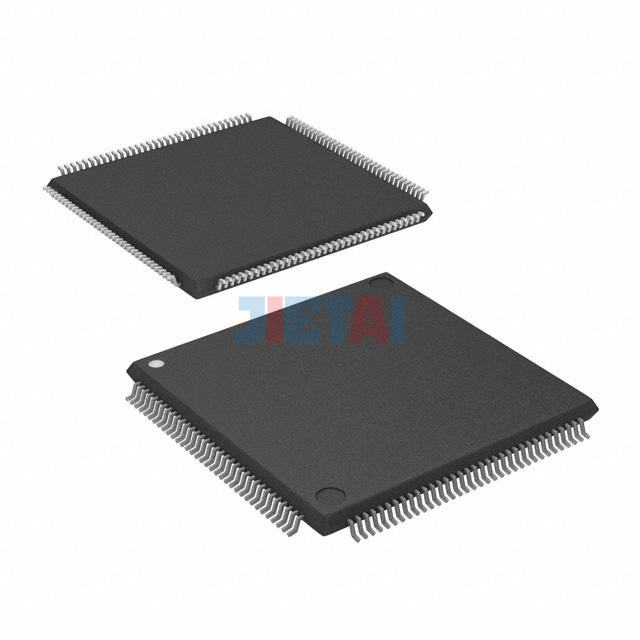

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | MC9S12XET256CAG |
| Datasheet | MC9S12XET256CAG datasheet |
| Description | IC MCU 16BIT 256KB FLASH 144LQFP |
| Manufacturer | NXP USA Inc. |
| Series | HCS12X |
| Part Status | Active |
| Core Processor | HCS12X |
| Core Size | 16-Bit |
| Speed | 50MHz |
| Connectivity | CANbus, EBI/EMI, I²C, IrDA, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 119 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.72V ~ 5.5V |
| Data Converters | A/D 24x12b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | Surface Mount |
| Supplier Device Package | 144-LQFP |
| Base Part Number | 144-LQFP (20x20) |
