Product Introduction
SDR0503-102KL
- Part Number
- SDR0503-102KL
- Manufacturer/Brand
- Bourns Inc.
- Description
- FIXED IND 1MH 110MA 11.5 OHM SMD
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- SDR0503
- Quantity
- 18pcs Stock Available.

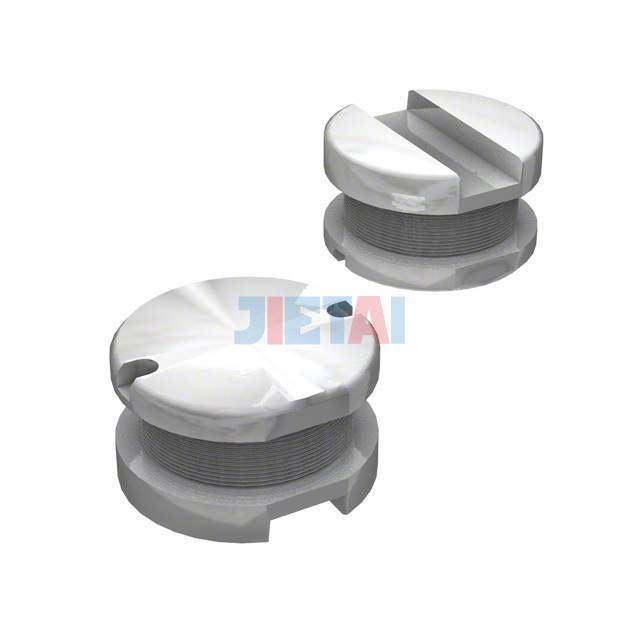

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | SDR0503-102KL |
| Datasheet | SDR0503-102KL datasheet |
| Description | FIXED IND 1MH 110MA 11.5 OHM SMD |
| Manufacturer | Bourns Inc. |
| Series | SDR0503 |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 1mH |
| Tolerance | ±10% |
| Current Rating | 110mA |
| Current - Saturation | 135mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 11.5 Ohm Max |
| Q @ Freq | 40 @ 252kHz |
| Frequency - Self Resonant | 3MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 1kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.197" L x 0.189" W (5.00mm x 4.80mm) |
| Height - Seated (Max) | 0.130" (3.30mm) |
