Product Introduction
MC9S12DT256CPVE
- Part Number
- MC9S12DT256CPVE
- Manufacturer/Brand
- NXP USA Inc.
- Description
- IC MCU 16BIT 256KB FLASH 112LQFP
- Category
- Embedded - Microcontrollers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- HCS12
- Quantity
- 247pcs Stock Available.

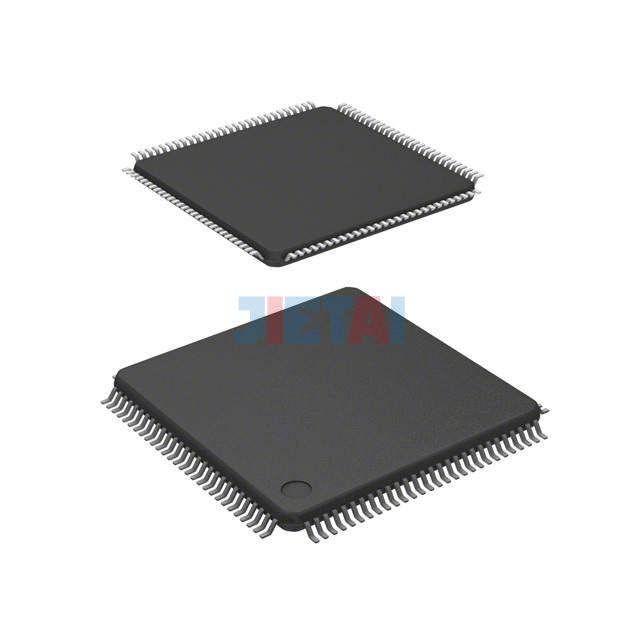

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | MC9S12DT256CPVE |
| Datasheet | MC9S12DT256CPVE datasheet |
| Description | IC MCU 16BIT 256KB FLASH 112LQFP |
| Manufacturer | NXP USA Inc. |
| Series | HCS12 |
| Part Status | Active |
| Core Processor | HCS12 |
| Core Size | 16-Bit |
| Speed | 25MHz |
| Connectivity | CANbus, I²C, SCI, SPI |
| Peripherals | PWM, WDT |
| Number of I/O | 91 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 12K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.35V ~ 5.25V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | Surface Mount |
| Supplier Device Package | 112-LQFP |
| Base Part Number | 112-LQFP (20x20) |
