Home / Products / Capacitors / Aluminum Electrolytic Capacitors / EKYB101ELL150MF11D
Product Introduction
EKYB101ELL150MF11D
- Part Number
- EKYB101ELL150MF11D
- Manufacturer/Brand
- United Chemi-Con
- Description
- CAP ALUM 15UF 20 100V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- KYB
- Quantity
- 1932pcs Stock Available.

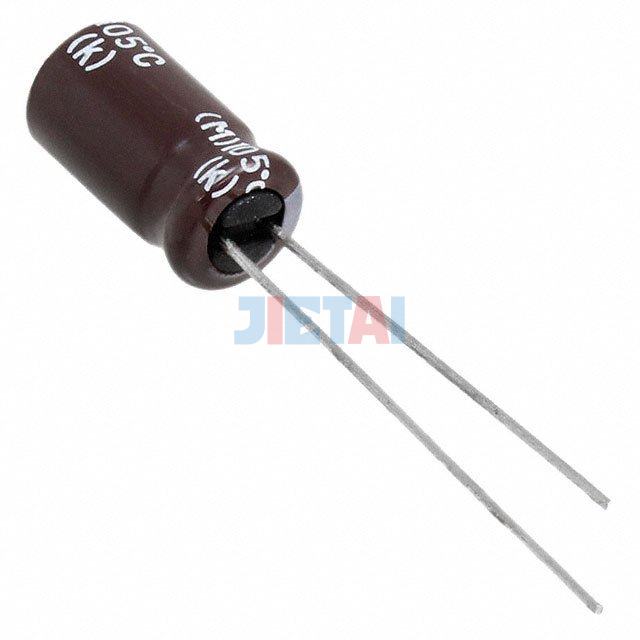

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | EKYB101ELL150MF11D |
| Datasheet | EKYB101ELL150MF11D datasheet |
| Description | CAP ALUM 15UF 20 100V RADIAL |
| Manufacturer | United Chemi-Con |
| Series | KYB |
| Part Status | Active |
| Capacitance | 15µF |
| Tolerance | ±20% |
| Voltage - Rated | 100V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 106.8mA @ 120Hz |
| Ripple Current @ High Frequency | 267mA @ 100kHz |
| Impedance | 430 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
