Product Introduction
EZM10DREH
- Part Number
- EZM10DREH
- Manufacturer/Brand
- Sullins Connector Solutions
- Description
- CONN EDGE DUAL FMALE 20POS 0.156
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 3622pcs Stock Available.

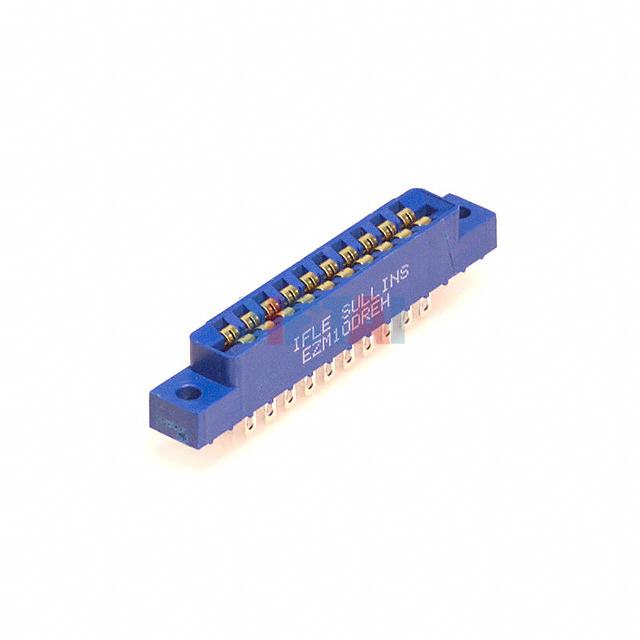

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | EZM10DREH |
| Datasheet | EZM10DREH datasheet |
| Description | CONN EDGE DUAL FMALE 20POS 0.156 |
| Manufacturer | Sullins Connector Solutions |
| Series | - |
| Part Status | Obsolete |
| Card Type | Non Specified - Dual Edge |
| Gender | Female |
| Number of Positions/Bay/Row | 10 |
| Number of Positions | 20 |
| Card Thickness | 0.062" (1.57mm) |
| Number of Rows | 2 |
| Pitch | 0.156" (3.96mm) |
| Read Out | Dual |
| Features | - |
| Mounting Type | Panel Mount |
| Termination | Solder Eyelet(s) |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
| Contact Type | Full Bellows |
| Color | Blue |
| Flange Feature | Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia |
| Operating Temperature | -65°C ~ 125°C |
