Product Introduction
C1812C561JFGAC7800
- Part Number
- C1812C561JFGAC7800
- Manufacturer/Brand
- KEMET
- Description
- CAP CER 560PF 1.5KV C0G/NP0 1812
- Category
- Ceramic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- SMD Comm C0G HV
- Quantity
- 30pcs Stock Available.

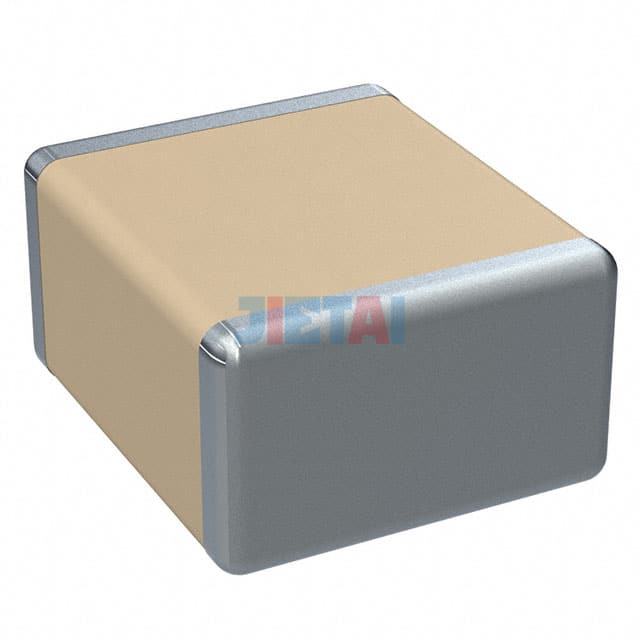

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | C1812C561JFGAC7800 |
| Datasheet | C1812C561JFGAC7800 datasheet |
| Description | CAP CER 560PF 1.5KV C0G/NP0 1812 |
| Manufacturer | KEMET |
| Series | SMD Comm C0G HV |
| Part Status | Active |
| Capacitance | 560pF |
| Tolerance | ±5% |
| Voltage - Rated | 1500V (1.5kV) |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C |
| Features | Low ESL, High Voltage |
| Ratings | - |
| Applications | General Purpose |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.071" (1.80mm) |
| Lead Spacing | - |
| Lead Style | - |
