Product Introduction
MC9S08LL16CLH
- Part Number
- MC9S08LL16CLH
- Manufacturer/Brand
- NXP USA Inc.
- Description
- IC MCU 8BIT 16KB FLASH 64LQFP
- Category
- Embedded - Microcontrollers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- S08
- Quantity
- 1301pcs Stock Available.

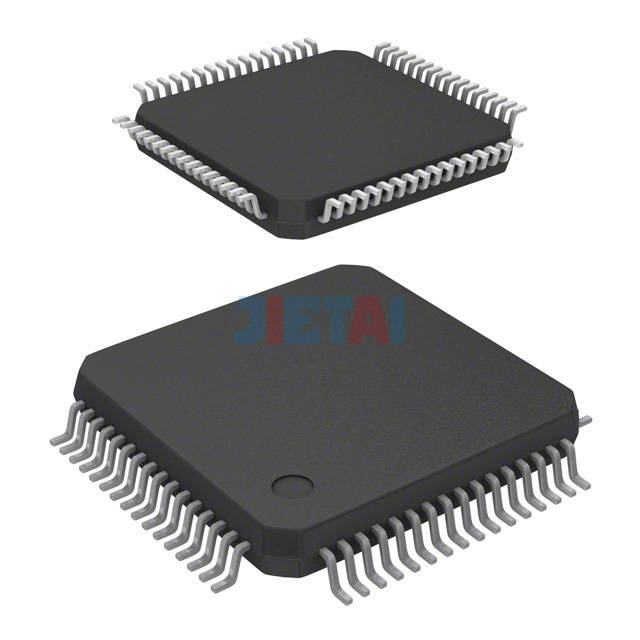

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | MC9S08LL16CLH |
| Datasheet | MC9S08LL16CLH datasheet |
| Description | IC MCU 8BIT 16KB FLASH 64LQFP |
| Manufacturer | NXP USA Inc. |
| Series | S08 |
| Part Status | Active |
| Core Processor | S08 |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I²C, SCI, SPI |
| Peripherals | LCD, LVD, POR, PWM, WDT |
| Number of I/O | 38 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 8x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | Surface Mount |
| Supplier Device Package | 64-LQFP |
| Base Part Number | 64-LQFP (10x10) |
