Product Introduction
SC3326F-102
- Part Number
- SC3326F-102
- Manufacturer/Brand
- Signal Transformer
- Description
- FIXED IND 1MH 450MA 2.7 OHM SMD
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- SC3326F
- Quantity
- 16pcs Stock Available.

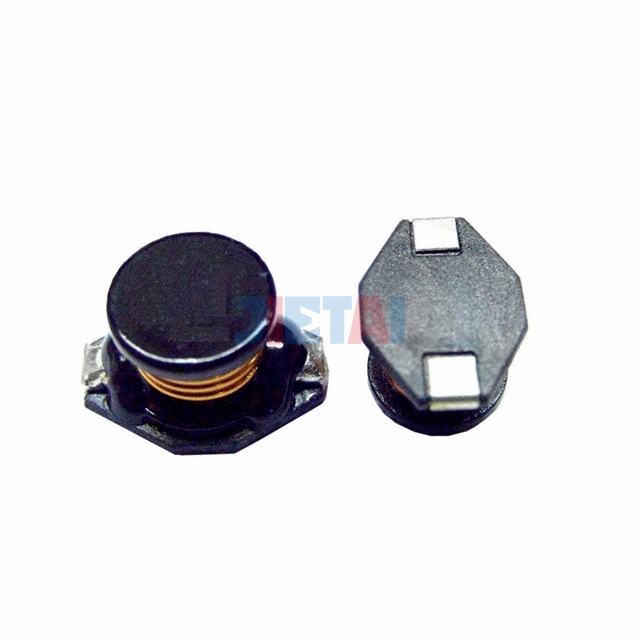

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | SC3326F-102 |
| Datasheet | SC3326F-102 datasheet |
| Description | FIXED IND 1MH 450MA 2.7 OHM SMD |
| Manufacturer | Signal Transformer |
| Series | SC3326F |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 1mH |
| Tolerance | ±20% |
| Current Rating | 450mA |
| Current - Saturation | 700mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.7 Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.530" L x 0.390" W (13.45mm x 9.90mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
