Product Introduction
TX24-40R-12ST-E1E
- Part Number
- TX24-40R-12ST-E1E
- Manufacturer/Brand
- JAE Electronics
- Description
- CONN RCPT 1.27MM 40POS GOLD STRG
- RoHs Status
- Lead free / RoHS Compliant
- Series
- TX24
- Quantity
- 14pcs Stock Available.

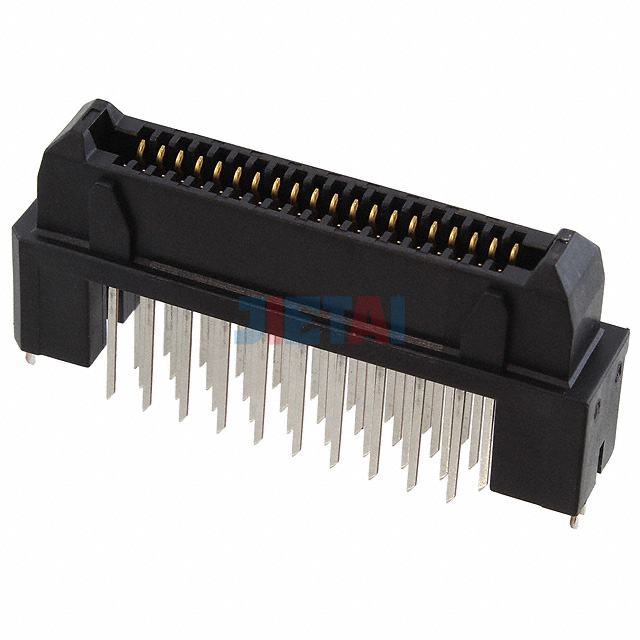

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | TX24-40R-12ST-E1E |
| Datasheet | TX24-40R-12ST-E1E datasheet |
| Description | CONN RCPT 1.27MM 40POS GOLD STRG |
| Manufacturer | JAE Electronics |
| Series | TX24 |
| Part Status | Active |
| Connector Type | Receptacle, Outer Shroud Contacts |
| Number of Positions | 40 |
| Pitch | 0.050" (1.27mm) |
| Number of Rows | 2 |
| Mounting Type | Through Hole |
| Features | Board Lock |
| Contact Finish | Gold |
| Contact Finish Thickness | 3.94µin (1.00µm) |
| Mated Stacking Heights | 18mm, 20mm, 24mm |
| Height Above Board | 0.642" (16.30mm) |
