Product Introduction
NS10145T220MNV
- Part Number
- NS10145T220MNV
- Manufacturer/Brand
- Taiyo Yuden
- Description
- FIXED IND 22UH 2.3A 68.4 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- NS
- Quantity
- 1617pcs Stock Available.

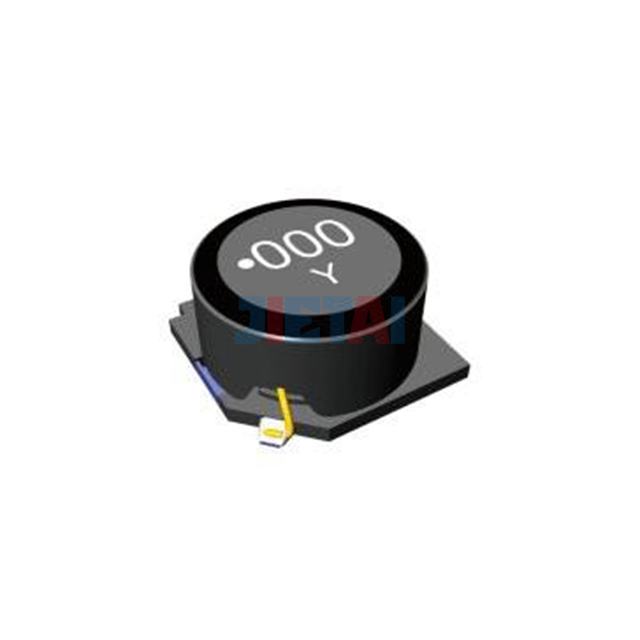

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | NS10145T220MNV |
| Datasheet | NS10145T220MNV datasheet |
| Description | FIXED IND 22UH 2.3A 68.4 MOHM |
| Manufacturer | Taiyo Yuden |
| Series | NS |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 22µH |
| Tolerance | ±20% |
| Current Rating | 2.3A |
| Current - Saturation | 2.87A |
| Shielding | Shielded |
| DC Resistance (DCR) | 68.4 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 13.5MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.398" L x 0.398" W (10.10mm x 10.10mm) |
| Height - Seated (Max) | 0.191" (4.85mm) |
