Product Introduction
STGIPQ3H60T-HL
- Part Number
- STGIPQ3H60T-HL
- Manufacturer/Brand
- STMicroelectronics
- Description
- IC MOTOR DRVR 13.5V-18V 26N2DIP
- Category
- PMIC - Motor Drivers, Controllers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 229pcs Stock Available.

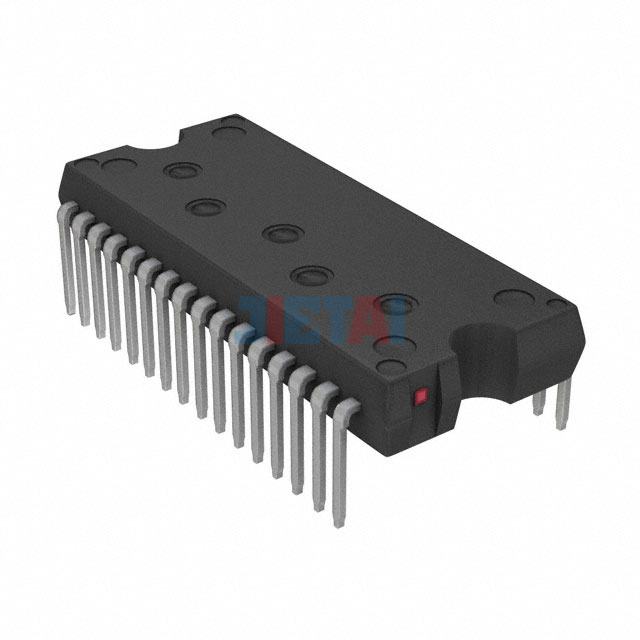

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | STGIPQ3H60T-HL |
| Datasheet | STGIPQ3H60T-HL datasheet |
| Description | IC MOTOR DRVR 13.5V-18V 26N2DIP |
| Manufacturer | STMicroelectronics |
| Series | - |
| Part Status | Active |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | AC, Synchronous |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (3) |
| Interface | - |
| Technology | IGBT |
| Step Resolution | - |
| Applications | Appliance |
| Current - Output | - |
| Voltage - Supply | 13.5V ~ 18V |
| Voltage - Load | 500V (Max) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 26-DIP Module |
| Supplier Device Package | 26-N2DIP |
