Product Introduction

HVC0805T5004JET

Part Number
HVC0805T5004JET
Manufacturer/Brand
Ohmite
Description
RES SMD 5M OHM 5 1/8W 0805
Category
Chip Resistor - Surface Mount
RoHs Status
Lead free / RoHS Compliant
Series
HVC
Quantity
1694pcs Stock Available.

Quick Order

Company
Contact
Phone
Email
Country
Content

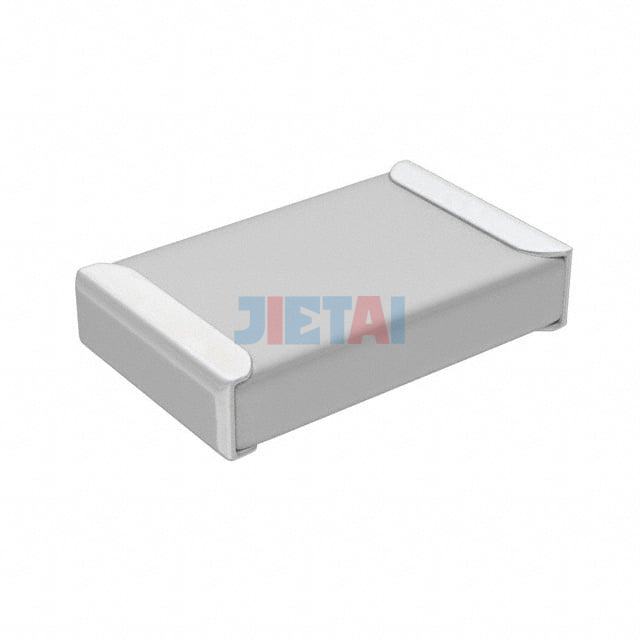

Images are for reference only
See Product Specifications

Product Specifications

Part Number HVC0805T5004JET
Datasheet HVC0805T5004JET datasheet
Description RES SMD 5M OHM 5 1/8W 0805
Manufacturer Ohmite
Series HVC
Part Status Active
Resistance 5 MOhms
Tolerance ±5%
Power (Watts) 0.125W, 1/8W
Composition Thick Film
Features High Voltage
Temperature Coefficient ±100ppm/°C
Operating Temperature -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
Failure Rate -
