Product Introduction
DF2556FC20DV
- Part Number
- DF2556FC20DV
- Manufacturer/Brand
- Renesas Electronics America
- Description
- IC MCU 16BIT 512KB FLASH 144QFP
- Category
- Embedded - Microcontrollers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- H8® H8S/2500
- Quantity
- 202pcs Stock Available.

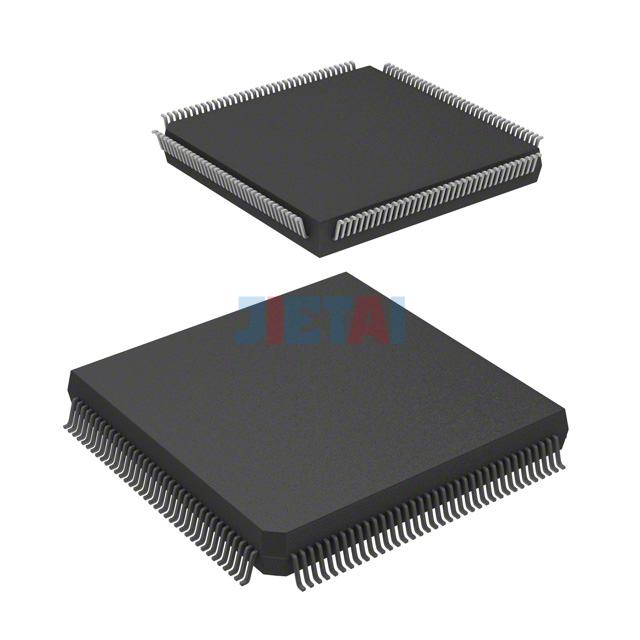

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | DF2556FC20DV |
| Datasheet | DF2556FC20DV datasheet |
| Description | IC MCU 16BIT 512KB FLASH 144QFP |
| Manufacturer | Renesas Electronics America |
| Series | H8® H8S/2500 |
| Part Status | Active |
| Core Processor | H8S/2000 |
| Core Size | 16-Bit |
| Speed | 20MHz |
| Connectivity | CANbus, I²C, SCI |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 104 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Data Converters | A/D 16x10b; D/A 2x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | Surface Mount |
| Supplier Device Package | 144-BFQFP |
| Base Part Number | 144-QFP (20x20) |
