Product Introduction
LBM2016T560J
- Part Number
- LBM2016T560J
- Manufacturer/Brand
- Taiyo Yuden
- Description
- FIXED IND 56UH 95MA 5.9 OHM SMD
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LB, M Type
- Quantity
- 2134pcs Stock Available.

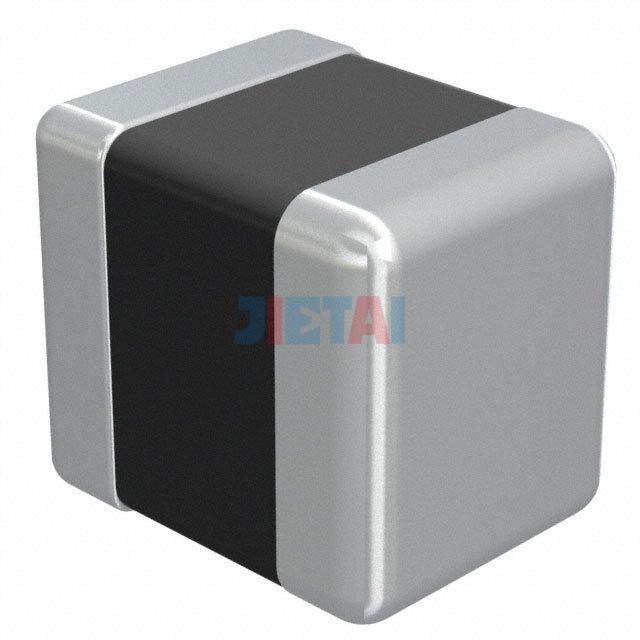

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LBM2016T560J |
| Datasheet | LBM2016T560J datasheet |
| Description | FIXED IND 56UH 95MA 5.9 OHM SMD |
| Manufacturer | Taiyo Yuden |
| Series | LB, M Type |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 56µH |
| Tolerance | ±5% |
| Current Rating | 95mA |
| Current - Saturation | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 5.9 Ohm |
| Q @ Freq | 20 @ 2.52MHz |
| Frequency - Self Resonant | 12MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 2.52MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0806 (2016 Metric) |
| Supplier Device Package | 0806 (2016 Metric) |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
