Product Introduction
MHQ0603P4N7ST000
- Part Number
- MHQ0603P4N7ST000
- Manufacturer/Brand
- TDK Corporation
- Description
- FIXED IND 4.7NH 350MA 400 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- MHQ-P
- Quantity
- 15118pcs Stock Available.

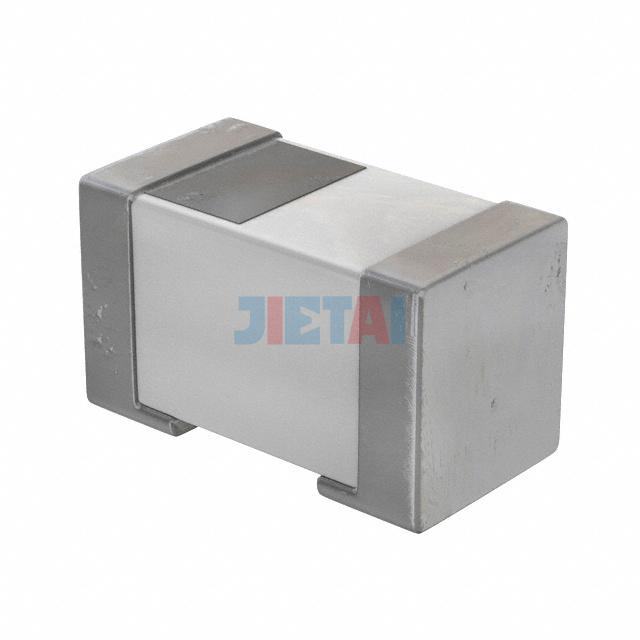

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | MHQ0603P4N7ST000 |
| Datasheet | MHQ0603P4N7ST000 datasheet |
| Description | FIXED IND 4.7NH 350MA 400 MOHM |
| Manufacturer | TDK Corporation |
| Series | MHQ-P |
| Part Status | Active |
| Type | Multilayer |
| Material - Core | Ceramic, Non-Magnetic |
| Inductance | 4.7nH |
| Tolerance | ±0.3nH |
| Current Rating | 350mA |
| Current - Saturation | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 400 mOhm Max |
| Q @ Freq | 16 @ 500MHz |
| Frequency - Self Resonant | 5.5GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 500MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 (0603 Metric) |
| Size / Dimension | 0.026" L x 0.014" W (0.65mm x 0.35mm) |
| Height - Seated (Max) | 0.016" (0.40mm) |
