Product Introduction
BSS84PW
- Part Number
- BSS84PW
- Manufacturer/Brand
- Infineon Technologies
- Description
- MOSFET P-CH 60V 150MA SOT-323
- Category
- Transistors - FETs, MOSFETs - Single
- RoHs Status
- Lead free / RoHS Compliant
- Series
- SIPMOS®
- Quantity
- 9436pcs Stock Available.

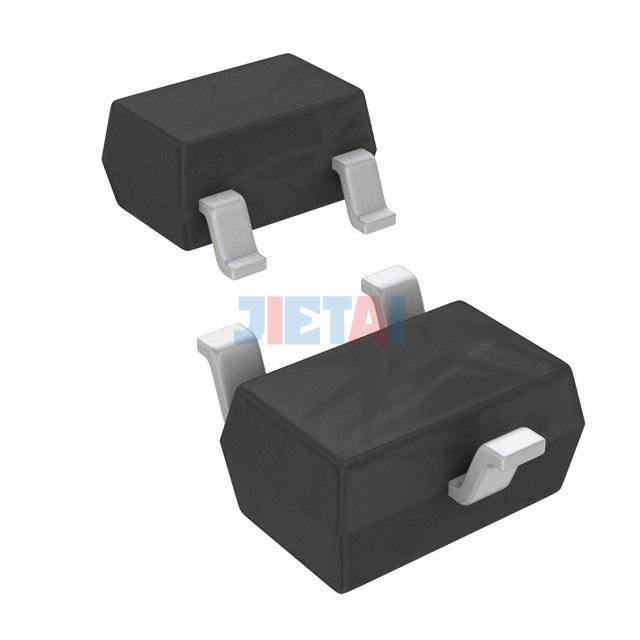

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | BSS84PW |
| Datasheet | BSS84PW datasheet |
| Description | MOSFET P-CH 60V 150MA SOT-323 |
| Manufacturer | Infineon Technologies |
| Series | SIPMOS® |
| Part Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 150mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 8 Ohm @ 150mA, 10V |
| Vgs(th) (Max) @ Id | 2V @ 20µA |
| Gate Charge (Qg) (Max) @ Vgs | 1.5nC @ 10V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 19.1pF @ 25V |
| FET Feature | - |
| Power Dissipation (Max) | 300mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-SOT323-3 |
| Package / Case | SC-70, SOT-323 |
