Product Introduction
LB11620GP-TE-L-H
- Part Number
- LB11620GP-TE-L-H
- Manufacturer/Brand
- ON Semiconductor
- Description
- IC MTR DRVR 4.5-5.5V/8-17V 24VCT
- Category
- PMIC - Motor Drivers, Controllers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 6385pcs Stock Available.

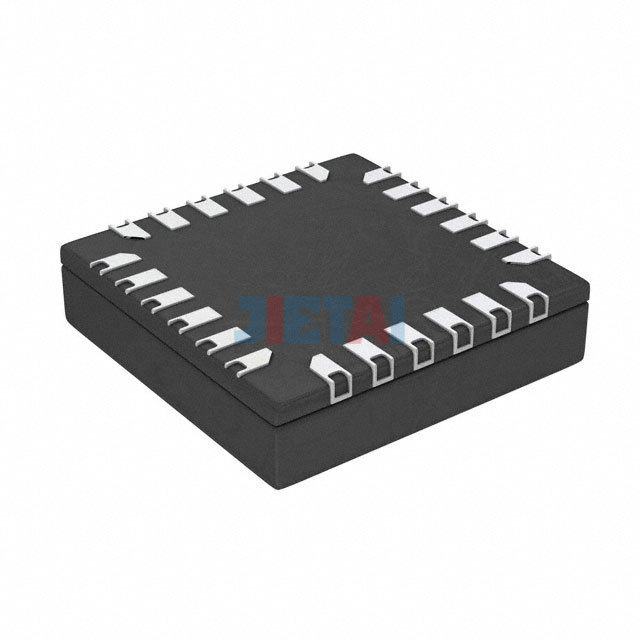

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LB11620GP-TE-L-H |
| Datasheet | LB11620GP-TE-L-H datasheet |
| Description | IC MTR DRVR 4.5-5.5V/8-17V 24VCT |
| Manufacturer | ON Semiconductor |
| Series | - |
| Part Status | Active |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Function | Controller - Commutation, Direction Management |
| Output Configuration | Pre-Driver - Half Bridge (3) |
| Interface | PWM |
| Technology | - |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | - |
| Voltage - Supply | 4.5V ~ 5.5V, 8V ~ 17V |
| Voltage - Load | - |
| Operating Temperature | -30°C ~ 100°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-WFQFN |
| Supplier Device Package | 24-VCT (3.5x3.5) |
