Product Introduction

R5F564MLDDFP#V1

Part Number
R5F564MLDDFP#V1
Manufacturer/Brand
Renesas Electronics America
Description
IC MCU 32BIT 4MB FLASH 100QFP
Category
Embedded - Microcontrollers
RoHs Status
Lead free / RoHS Compliant
Series
RX600
Quantity
1057pcs Stock Available.

Quick Order

Company
Contact
Phone
Email
Country
Content

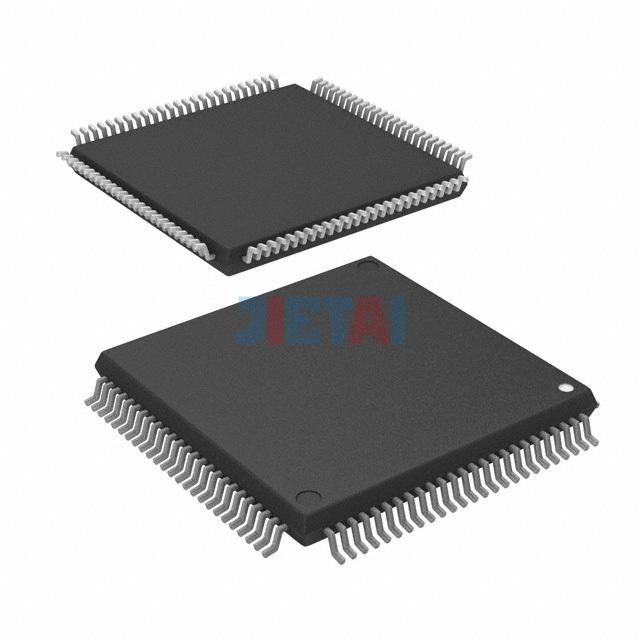

Images are for reference only
See Product Specifications

Product Specifications

Part Number R5F564MLDDFP#V1
Datasheet R5F564MLDDFP#V1 datasheet
Description IC MCU 32BIT 4MB FLASH 100QFP
Manufacturer Renesas Electronics America
Series RX600
Part Status Active
Core Processor RXv2
Core Size 32-Bit
Speed 120MHz
Connectivity CANbus, EBI/EMI, Ethernet, I²C, LINbus, MMC/SD, SCI, SPI, SSI, UART/USART, USB
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 78
Program Memory Size 4MB (4M x 8)
Program Memory Type FLASH
EEPROM Size 64K x 8
RAM Size 552K x 8
Voltage - Supply (Vcc/Vdd) 2.7V ~ 3.6V
Data Converters A/D 22x12b; D/A 1x12b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Package / Case Surface Mount
Supplier Device Package 100-LQFP
Base Part Number 100-LFQFP (14x14)
