Product Introduction
CSR1206JKR100
- Part Number
- CSR1206JKR100
- Manufacturer/Brand
- Stackpole Electronics Inc
- Description
- RES 0.1 OHM 5 1/2W 1206
- Category
- Chip Resistor - Surface Mount
- RoHs Status
- Lead free / RoHS Compliant
- Series
- CSR
- Quantity
- 17pcs Stock Available.

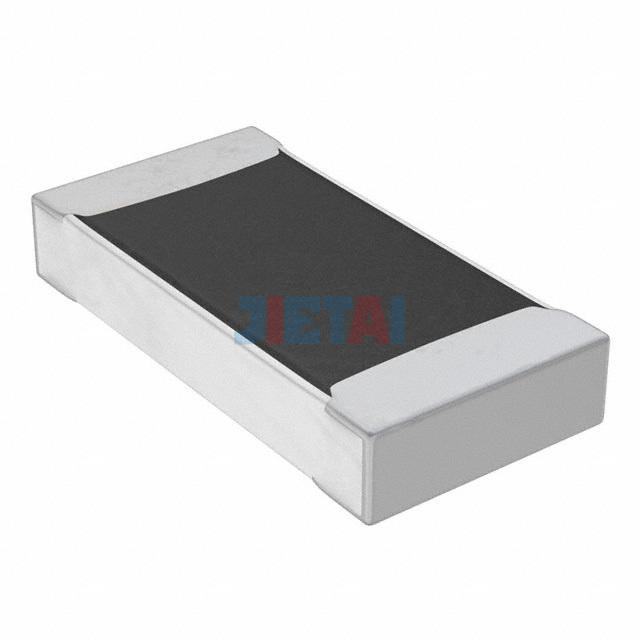

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | CSR1206JKR100 |
| Datasheet | CSR1206JKR100 datasheet |
| Description | RES 0.1 OHM 5 1/2W 1206 |
| Manufacturer | Stackpole Electronics Inc |
| Series | CSR |
| Part Status | Active |
| Resistance | 100 mOhms |
| Tolerance | ±5% |
| Power (Watts) | 0.5W, 1/2W |
| Composition | Thick Film |
| Features | Current Sense |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Size / Dimension | 0.120" L x 0.061" W (3.05mm x 1.55mm) |
| Height - Seated (Max) | 0.026" (0.65mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
