Home / Products / Capacitors / Aluminum Electrolytic Capacitors / UCL0J331MCL6GS
Product Introduction
UCL0J331MCL6GS
- Part Number
- UCL0J331MCL6GS
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 330UF 20 6.3V SMD
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UCL
- Quantity
- 15pcs Stock Available.

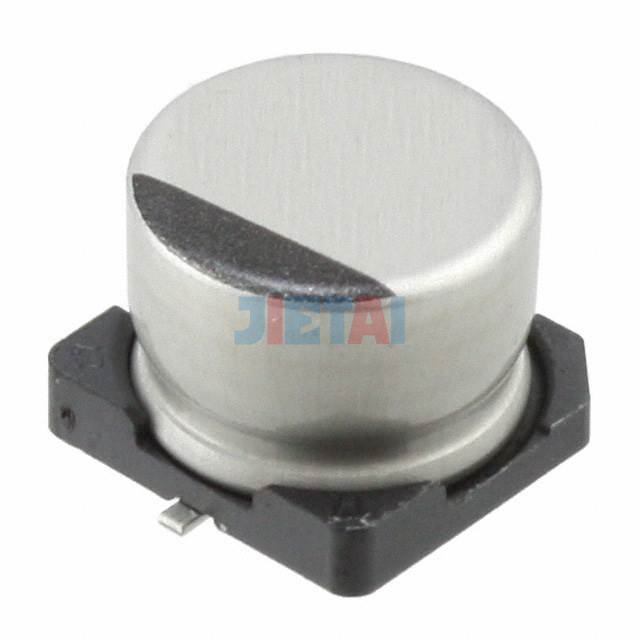

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UCL0J331MCL6GS |
| Datasheet | UCL0J331MCL6GS datasheet |
| Description | CAP ALUM 330UF 20 6.3V SMD |
| Manufacturer | Nichicon |
| Series | UCL |
| Part Status | Active |
| Capacitance | 330µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 250mA @ 120Hz |
| Ripple Current @ High Frequency | 500mA @ 100kHz |
| Impedance | 180 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.244" (6.20mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
