Product Introduction
TM4C123GH6PGEI
- Part Number
- TM4C123GH6PGEI
- Manufacturer/Brand
- Texas Instruments
- Description
- IC MCU 32BIT 256KB FLASH 144LQFP
- Category
- Embedded - Microcontrollers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Tiva™ C
- Quantity
- 1004pcs Stock Available.

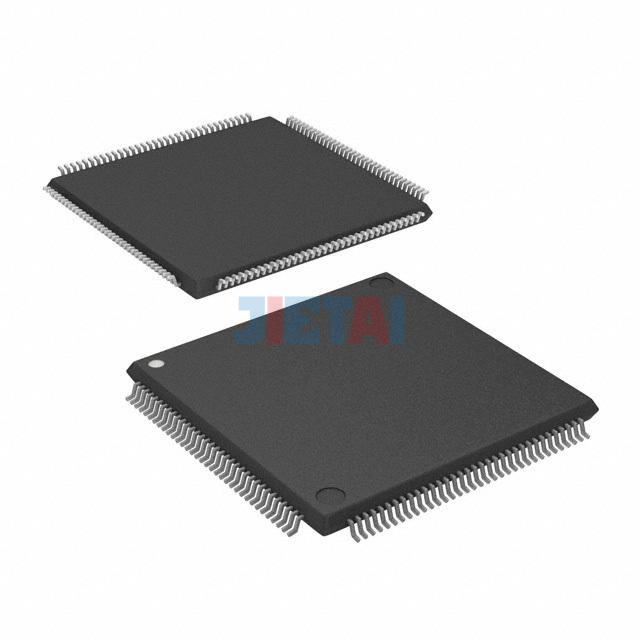

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | TM4C123GH6PGEI |
| Description | IC MCU 32BIT 256KB FLASH 144LQFP |
| Manufacturer | Texas Instruments |
| Series | Tiva™ C |
| Part Status | Active |
| Core Processor | ARM® Cortex®-M4F |
| Core Size | 32-Bit |
| Speed | 80MHz |
| Connectivity | CANbus, I²C, IrDA, Microwire, QEI, SPI, SSI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, Motion PWM, POR, WDT |
| Number of I/O | 105 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.08V ~ 3.63V |
| Data Converters | A/D 24x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | Surface Mount |
| Supplier Device Package | 144-LQFP |
| Base Part Number | 144-LQFP (20x20) |
