Product Introduction
BD63823EFV-E2
- Part Number
- BD63823EFV-E2
- Manufacturer/Brand
- Rohm Semiconductor
- Description
- IC MOTOR DRIVER 19V-28V 28HTSSOP
- Category
- PMIC - Motor Drivers, Controllers
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 6437pcs Stock Available.

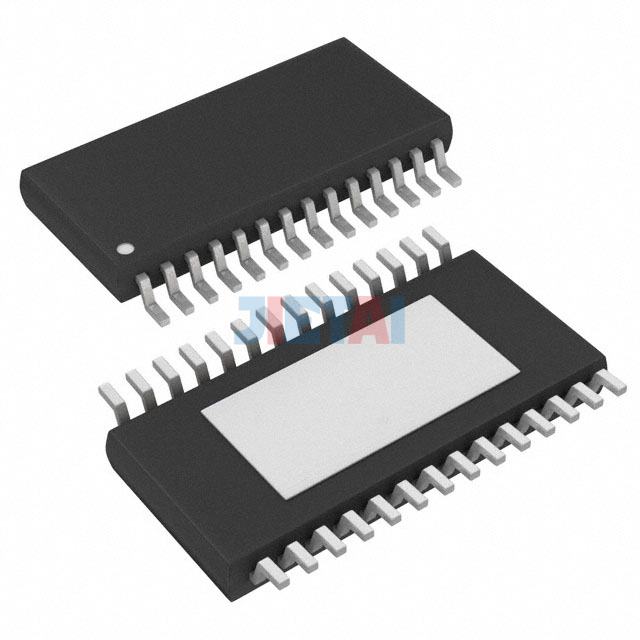

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | BD63823EFV-E2 |
| Datasheet | BD63823EFV-E2 datasheet |
| Description | IC MOTOR DRIVER 19V-28V 28HTSSOP |
| Manufacturer | Rohm Semiconductor |
| Series | - |
| Part Status | Not For New Designs |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel |
| Technology | DMOS |
| Step Resolution | 1, 1/2 |
| Applications | Printer |
| Current - Output | 2A |
| Voltage - Supply | 19V ~ 28V |
| Voltage - Load | 19V ~ 28V |
| Operating Temperature | -25°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 28-VSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 28-HTSSOP-B |
