Product Introduction
IP4283CZ10-TBR/S9X
- Part Number
- IP4283CZ10-TBR/S9X
- Manufacturer/Brand
- NXP USA Inc.
- Description
- TVS DIODE 5.5V 9.5V DFN2510-10
- Category
- TVS - Diodes
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 3377pcs Stock Available.

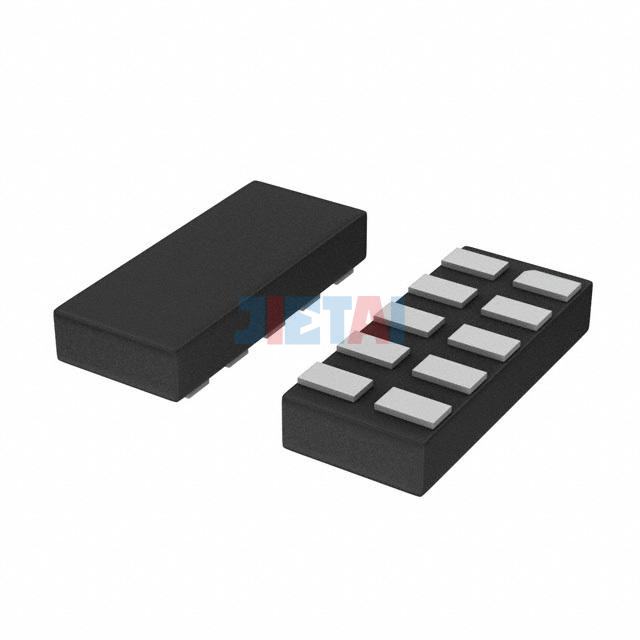

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | IP4283CZ10-TBR/S9X |
| Description | TVS DIODE 5.5V 9.5V DFN2510-10 |
| Manufacturer | NXP USA Inc. |
| Series | - |
| Part Status | Active |
| Type | Steering (Rail to Rail) |
| Unidirectional Channels | 4 |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5.5V |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 9.5V (Typ) |
| Current - Peak Pulse (10/1000µs) | 3.8A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | Yes |
| Applications | HDMI |
| Capacitance @ Frequency | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-XFDFN |
| Supplier Device Package | DFN2510-10 |
