Product Introduction
UHW1C472MHD6
- Part Number
- UHW1C472MHD6
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 4700UF 20 16V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UHW
- Quantity
- 351pcs Stock Available.

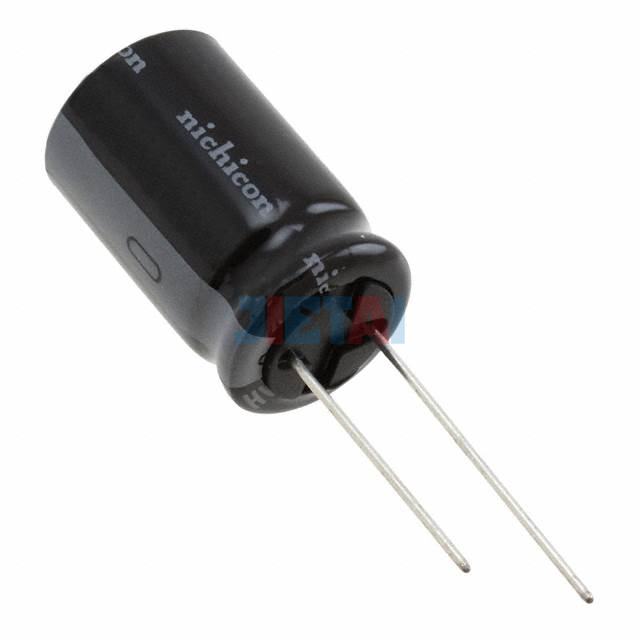

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UHW1C472MHD6 |
| Datasheet | UHW1C472MHD6 datasheet |
| Description | CAP ALUM 4700UF 20 16V RADIAL |
| Manufacturer | Nichicon |
| Series | UHW |
| Part Status | Active |
| Capacitance | 4700µF |
| Tolerance | ±20% |
| Voltage - Rated | 16V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.048A @ 120Hz |
| Ripple Current @ High Frequency | 3.81A @ 100kHz |
| Impedance | 13 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
