Product Introduction
LQH2HPN2R2MDRL
- Part Number
- LQH2HPN2R2MDRL
- Manufacturer/Brand
- Murata Electronics North America
- Description
- FIXED IND 2.2UH 820MA 408 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LQH2
- Quantity
- 8124pcs Stock Available.

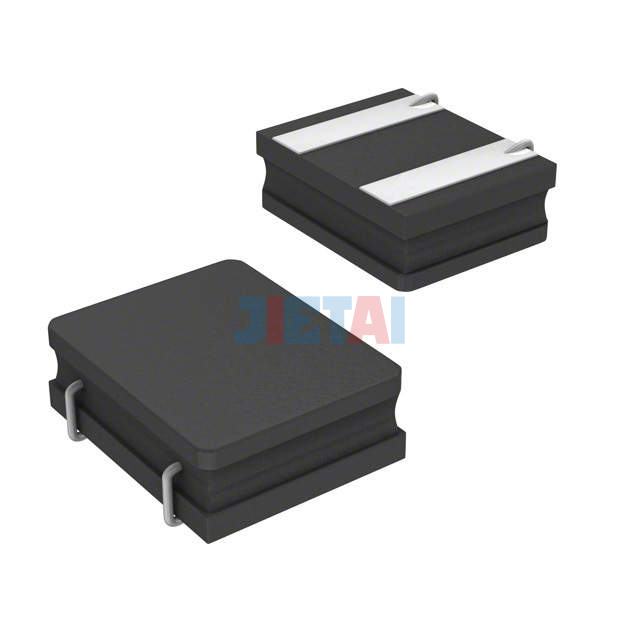

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LQH2HPN2R2MDRL |
| Datasheet | LQH2HPN2R2MDRL datasheet |
| Description | FIXED IND 2.2UH 820MA 408 MOHM |
| Manufacturer | Murata Electronics North America |
| Series | LQH2 |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 2.2µH |
| Tolerance | ±20% |
| Current Rating | 820mA |
| Current - Saturation | 850mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 408 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 50MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
