Home / Products / Capacitors / Aluminum Electrolytic Capacitors / KY35VB332M16X40LL
Product Introduction
KY35VB332M16X40LL
- Part Number
- KY35VB332M16X40LL
- Manufacturer/Brand
- United Chemi-Con
- Description
- CAP ALUM 3300UF 20 35V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- KY
- Quantity
- 838pcs Stock Available.

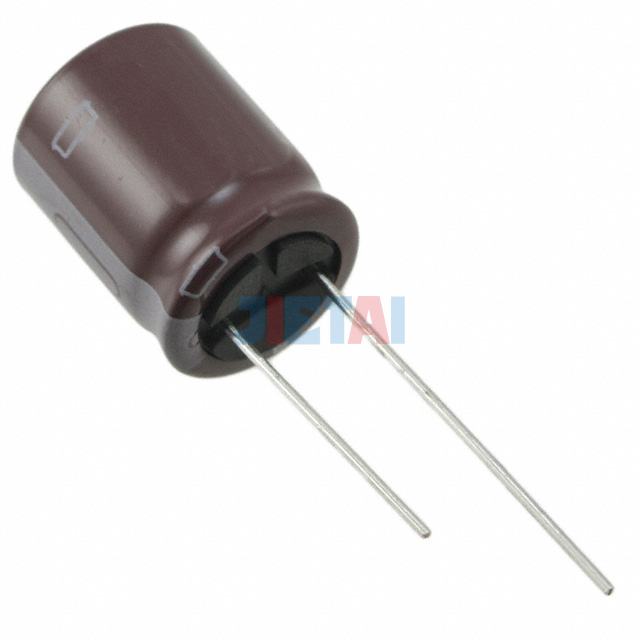

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | KY35VB332M16X40LL |
| Description | CAP ALUM 3300UF 20 35V RADIAL |
| Manufacturer | United Chemi-Con |
| Series | KY |
| Part Status | Obsolete |
| Capacitance | 3300µF |
| Tolerance | ±20% |
| Voltage - Rated | 35V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.06A @ 120Hz |
| Ripple Current @ High Frequency | 4.08A @ 100kHz |
| Impedance | 13 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
