Product Introduction
ECE-S1EG103N
- Part Number
- ECE-S1EG103N
- Manufacturer/Brand
- Panasonic Electronic Components
- Description
- CAP ALUM 10000UF 20 25V SNAP
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- TS-NH
- Quantity
- 368pcs Stock Available.

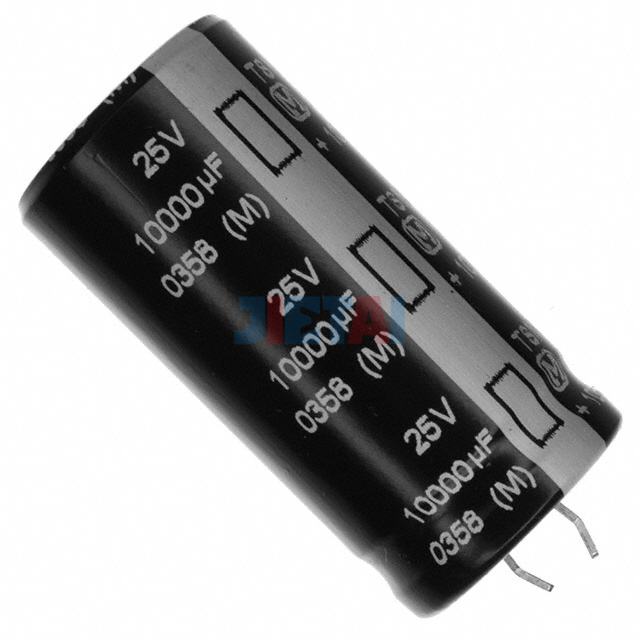

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | ECE-S1EG103N |
| Datasheet | ECE-S1EG103N datasheet |
| Description | CAP ALUM 10000UF 20 25V SNAP |
| Manufacturer | Panasonic Electronic Components |
| Series | TS-NH |
| Part Status | Obsolete |
| Capacitance | 10000µF |
| Tolerance | ±20% |
| Voltage - Rated | 25V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.1A @ 120Hz |
| Ripple Current @ High Frequency | 3.565A @ 50kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
