Product Introduction
SWB-0.42-2200
- Part Number
- SWB-0.42-2200
- Manufacturer/Brand
- Amgis, LLC
- Description
- FIXED IND 2.2MH 420MA 1.8 OHM TH
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- SW
- Quantity
- 16pcs Stock Available.

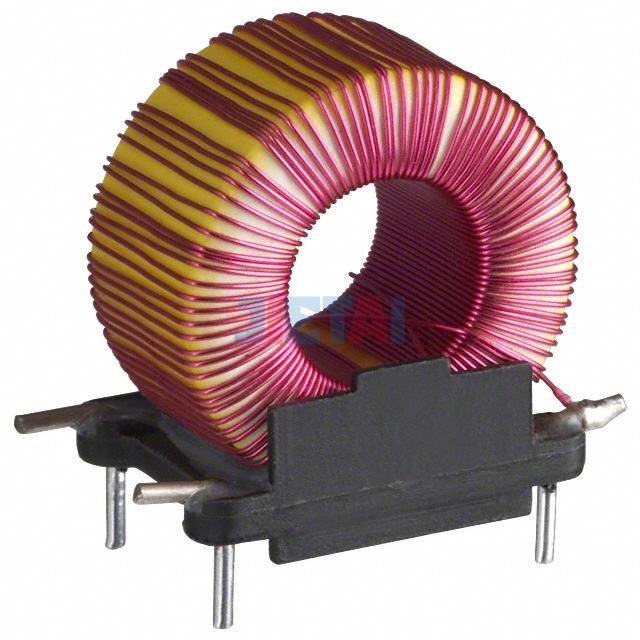

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | SWB-0.42-2200 |
| Datasheet | SWB-0.42-2200 datasheet |
| Description | FIXED IND 2.2MH 420MA 1.8 OHM TH |
| Manufacturer | Amgis, LLC |
| Series | SW |
| Part Status | Active |
| Type | Toroidal |
| Material - Core | Iron Powder |
| Inductance | 2.2mH |
| Tolerance | ±20% |
| Current Rating | 420mA |
| Current - Saturation | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.8 Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 10kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Supplier Device Package | - |
| Size / Dimension | 1.449" L x 0.799" W (36.80mm x 20.30mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
