Product Introduction
IHLP2020BZER2R2M11
- Part Number
- IHLP2020BZER2R2M11
- Manufacturer/Brand
- Vishay Dale
- Description
- FIXED IND 2.2UH 5A 37.7 MOHM SMD
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- IHLP-2020BZ-11
- Quantity
- 28131pcs Stock Available.

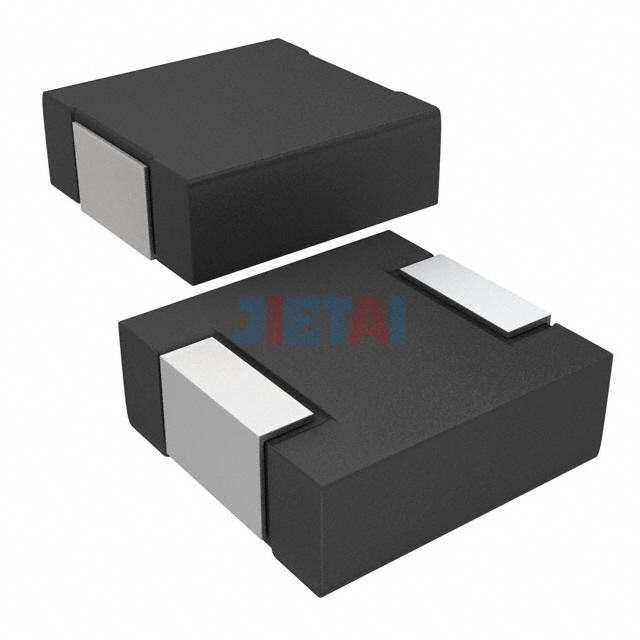

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | IHLP2020BZER2R2M11 |
| Datasheet | IHLP2020BZER2R2M11 datasheet |
| Description | FIXED IND 2.2UH 5A 37.7 MOHM SMD |
| Manufacturer | Vishay Dale |
| Series | IHLP-2020BZ-11 |
| Part Status | Active |
| Type | Molded |
| Material - Core | - |
| Inductance | 2.2µH |
| Tolerance | ±20% |
| Current Rating | 5A |
| Current - Saturation | 5.5A |
| Shielding | Shielded |
| DC Resistance (DCR) | 37.7 mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 41MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.216" L x 0.204" W (5.49mm x 5.18mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
