Product Introduction
NRPN142MAMS-RC
- Part Number
- NRPN142MAMS-RC
- Manufacturer/Brand
- Sullins Connector Solutions
- Description
- CONN HEADER SMD 28POS 2MM
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 6pcs Stock Available.

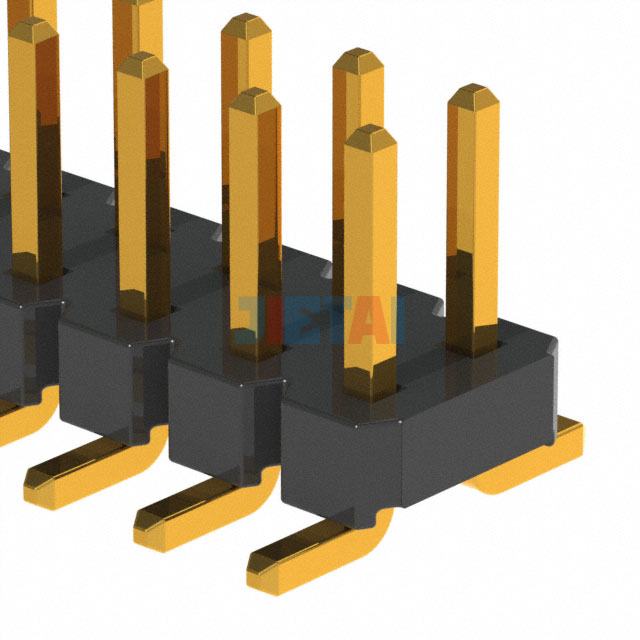

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | NRPN142MAMS-RC |
| Datasheet | NRPN142MAMS-RC datasheet |
| Description | CONN HEADER SMD 28POS 2MM |
| Manufacturer | Sullins Connector Solutions |
| Series | - |
| Part Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 28 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.141" (3.60mm) |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.059" (1.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA6T), Nylon 6T |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating | 2A |
| Voltage Rating | 150V |
