Product Introduction
36401E4N7ATDF
- Part Number
- 36401E4N7ATDF
- Manufacturer/Brand
- TE Connectivity Passive Product
- Description
- FIXED IND 4.7NH 320MA 650 MOHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- 3640, Sigma Inductors
- Quantity
- 2124pcs Stock Available.

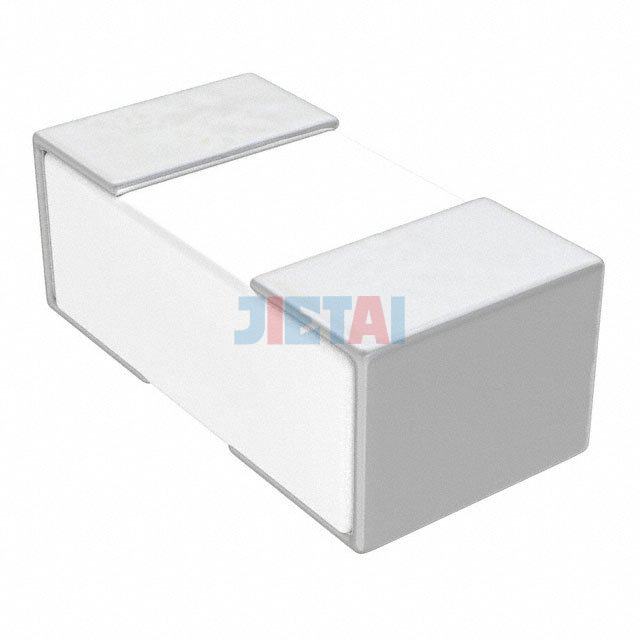

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 36401E4N7ATDF |
| Datasheet | 36401E4N7ATDF datasheet |
| Description | FIXED IND 4.7NH 320MA 650 MOHM |
| Manufacturer | TE Connectivity Passive Product |
| Series | 3640, Sigma Inductors |
| Part Status | Active |
| Type | Thin Film |
| Material - Core | - |
| Inductance | 4.7nH |
| Tolerance | ±0.2nH |
| Current Rating | 320mA |
| Current - Saturation | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 650 mOhm Max |
| Q @ Freq | 13 @ 500MHz |
| Frequency - Self Resonant | 6GHz |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 500MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.015" (0.37mm) |
