Product Introduction
UFG1H0R1MDM
- Part Number
- UFG1H0R1MDM
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 0.1UF 20 50V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UFG
- Quantity
- 6083pcs Stock Available.

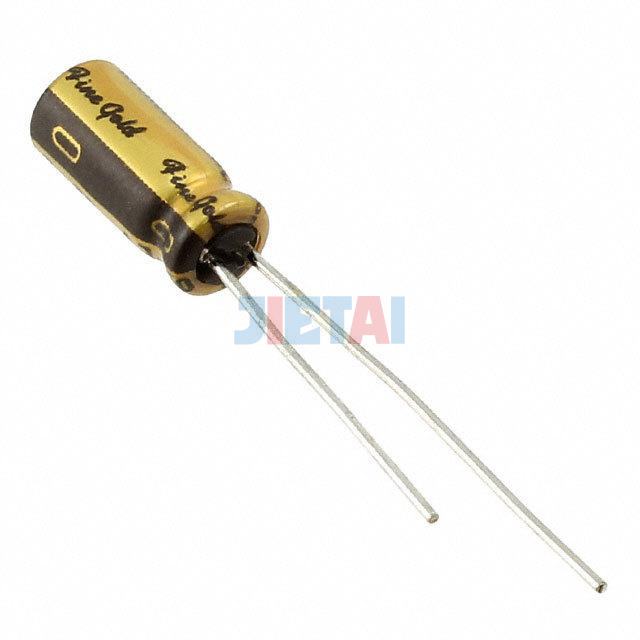

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UFG1H0R1MDM |
| Datasheet | UFG1H0R1MDM datasheet |
| Description | CAP ALUM 0.1UF 20 50V RADIAL |
| Manufacturer | Nichicon |
| Series | UFG |
| Part Status | Not For New Designs |
| Capacitance | 0.1µF |
| Tolerance | ±20% |
| Voltage - Rated | 50V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 1.1mA @ 120Hz |
| Ripple Current @ High Frequency | 2.2mA @ 10kHz |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
