Product Introduction
CB2518T680K
- Part Number
- CB2518T680K
- Manufacturer/Brand
- Taiyo Yuden
- Description
- FIXED IND 68UH 310MA 1.95 OHM
- Category
- Fixed Inductors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- CB
- Quantity
- 5pcs Stock Available.

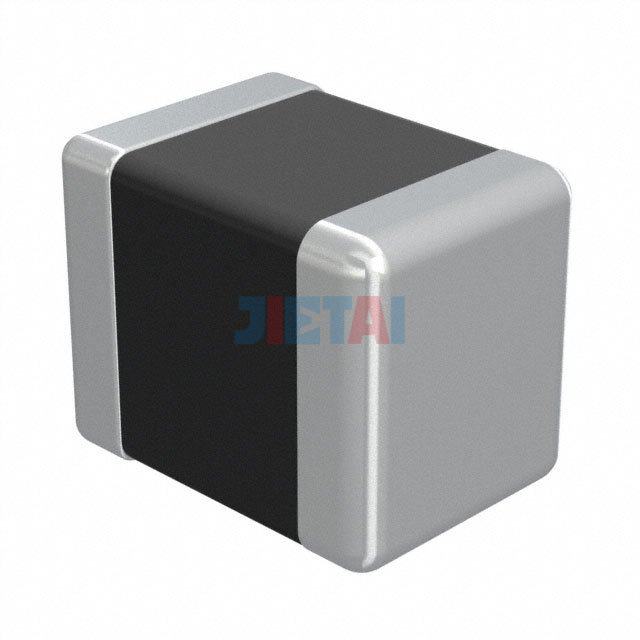

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | CB2518T680K |
| Datasheet | CB2518T680K datasheet |
| Description | FIXED IND 68UH 310MA 1.95 OHM |
| Manufacturer | Taiyo Yuden |
| Series | CB |
| Part Status | Active |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 68µH |
| Tolerance | ±10% |
| Current Rating | 310mA |
| Current - Saturation | 70mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.95 Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 9.5MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 2.52MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1007 (2518 Metric) |
| Supplier Device Package | 1007 (2518 Metric) |
| Size / Dimension | 0.098" L x 0.071" W (2.50mm x 1.80mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
