Home / Products / Capacitors / Aluminum Electrolytic Capacitors / LKS1J472MESZ
Product Introduction
LKS1J472MESZ
- Part Number
- LKS1J472MESZ
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 4700UF 20 63V SNAP
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- LKS
- Quantity
- 19pcs Stock Available.

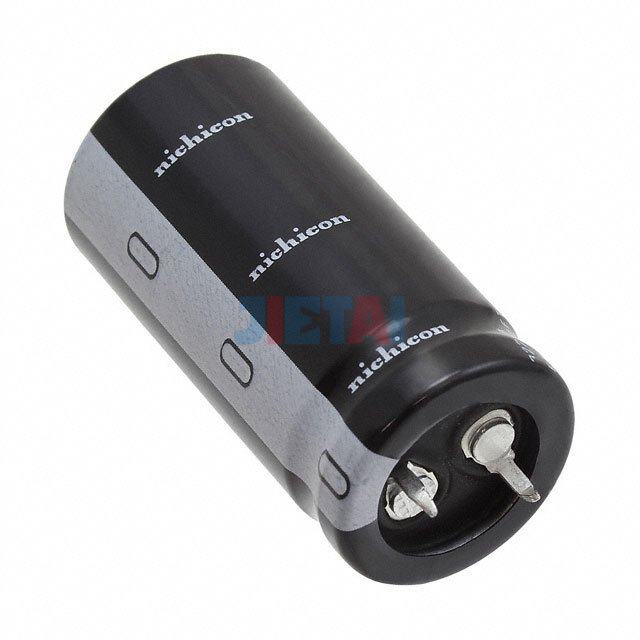

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | LKS1J472MESZ |
| Datasheet | LKS1J472MESZ datasheet |
| Description | CAP ALUM 4700UF 20 63V SNAP |
| Manufacturer | Nichicon |
| Series | LKS |
| Part Status | Active |
| Capacitance | 4700µF |
| Tolerance | ±20% |
| Voltage - Rated | 63V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Audio |
| Ripple Current @ Low Frequency | 3A @ 120Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
