Product Introduction
ADS7844EB
- Part Number
- ADS7844EB
- Manufacturer/Brand
- Texas Instruments
- Description
- IC 12-BIT 8-CHANNEL A/D 20-QSOP
- RoHs Status
- Lead free / RoHS Compliant
- Series
- -
- Quantity
- 4239pcs Stock Available.

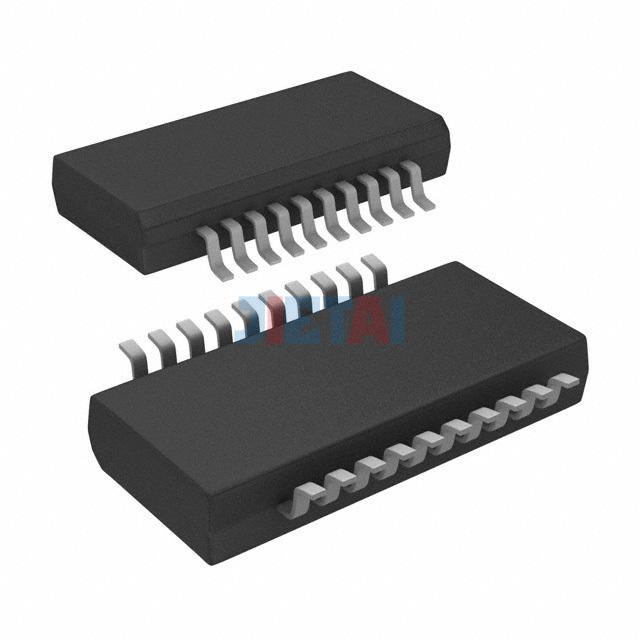

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | ADS7844EB |
| Description | IC 12-BIT 8-CHANNEL A/D 20-QSOP |
| Manufacturer | Texas Instruments |
| Series | - |
| Part Status | Active |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 200k |
| Number of Inputs | 4, 8 |
| Input Type | Differential, Single Ended |
| Data Interface | SPI |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 3.6V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.6V, 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 20-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 20-SSOP/QSOP |
| Base Part Number | Surface Mount |
