Product Introduction
MXLSMBG24CAE3
- Part Number
- MXLSMBG24CAE3
- Manufacturer/Brand
- Microsemi Corporation
- Description
- TVS DIODE 24V 38.9V DO215AA
- Category
- TVS - Diodes
- RoHs Status
- Lead free / RoHS Compliant
- Series
- Military, MIL-PRF-19500
- Quantity
- 7373pcs Stock Available.

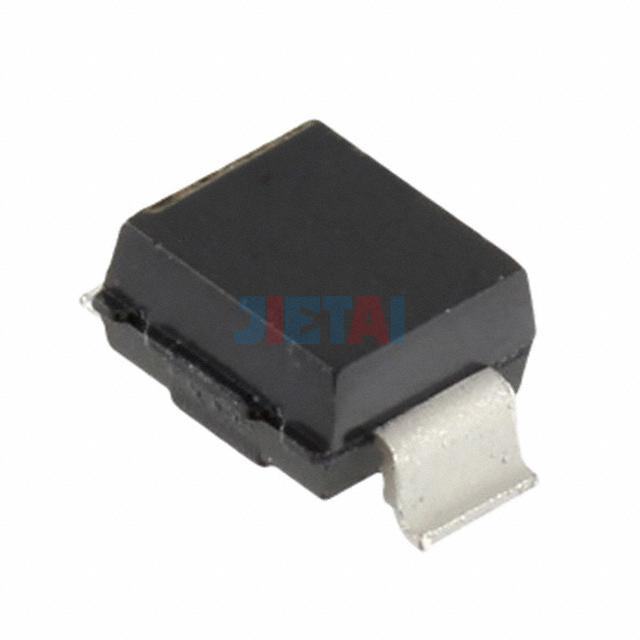

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | MXLSMBG24CAE3 |
| Datasheet | MXLSMBG24CAE3 datasheet |
| Description | TVS DIODE 24V 38.9V DO215AA |
| Manufacturer | Microsemi Corporation |
| Series | Military, MIL-PRF-19500 |
| Part Status | Active |
| Type | Zener |
| Unidirectional Channels | - |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 24V |
| Voltage - Breakdown (Min) | 26.7V |
| Voltage - Clamping (Max) @ Ipp | 38.9V |
| Current - Peak Pulse (10/1000µs) | 15.4A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-215AA, SMB Gull Wing |
| Supplier Device Package | SMBG (DO-215AA) |
