NRPN102MAMS-RC

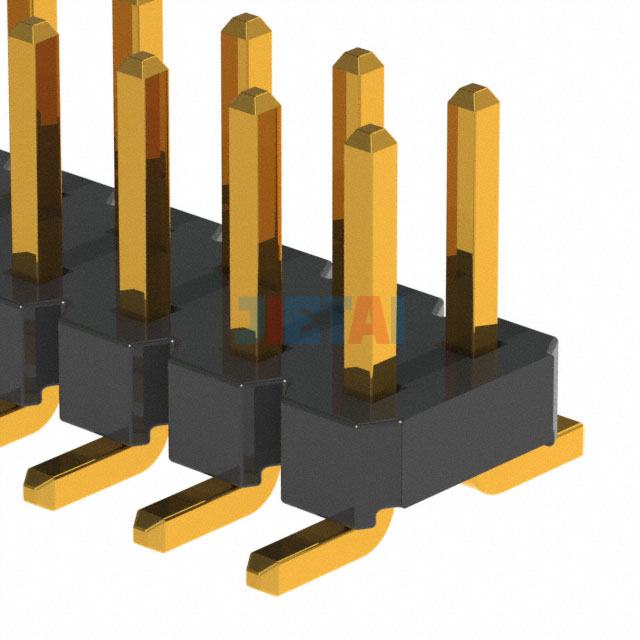

Images are for reference only
See Product Specifications

Part Number	NRPN102MAMS-RC
Datasheet	NRPN102MAMS-RC datasheet
Description	CONN HEADER SMD 20POS 2MM
Manufacturer	Sullins Connector Solutions
Series	-
Part Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.141" (3.60mm)
Contact Length - Post	-
Overall Contact Length	-
Insulation Height	0.059" (1.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Gold
Contact Material	Brass
Insulation Material	Polyamide (PA6T), Nylon 6T
Features	-
Operating Temperature	-40°C ~ 105°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating	2A
Voltage Rating	150V
