Product Introduction
UEP0J471MPD
- Part Number
- UEP0J471MPD
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 470UF 20 6.3V RADIAL
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UEP
- Quantity
- 694pcs Stock Available.

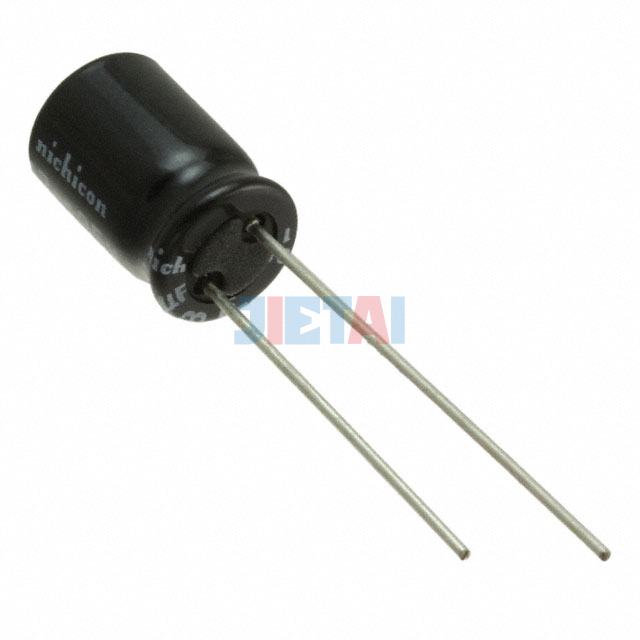

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UEP0J471MPD |
| Datasheet | UEP0J471MPD datasheet |
| Description | CAP ALUM 470UF 20 6.3V RADIAL |
| Manufacturer | Nichicon |
| Series | UEP |
| Part Status | Active |
| Capacitance | 470µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 260mA @ 120Hz |
| Ripple Current @ High Frequency | 390mA @ 10kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
