Home / Products / Capacitors / Aluminum Electrolytic Capacitors / UUG1V102MNQ1MS
Product Introduction

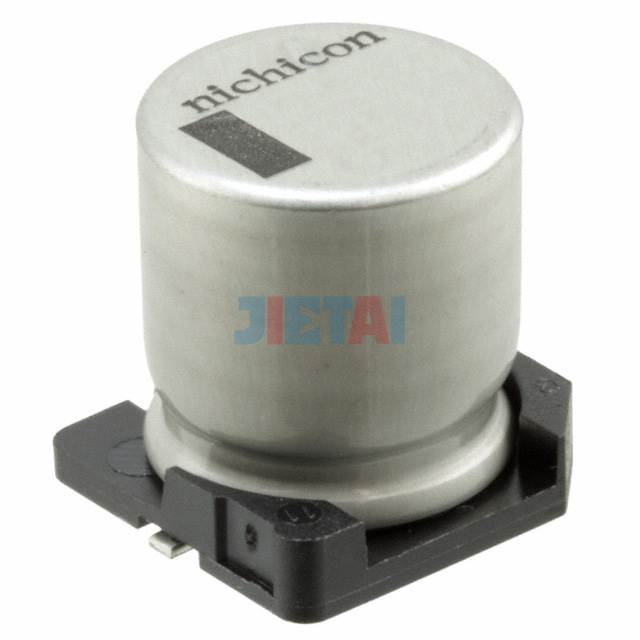

UUG1V102MNQ1MS
- Part Number
- UUG1V102MNQ1MS
- Manufacturer/Brand
- Nichicon
- Description
- CAP ALUM 1000UF 20 35V SMD
- Category
- Aluminum Electrolytic Capacitors
- RoHs Status
- Lead free / RoHS Compliant
- Series
- UUG
- Quantity
- 1929pcs Stock Available.
Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | UUG1V102MNQ1MS |
| Datasheet | UUG1V102MNQ1MS datasheet |
| Description | CAP ALUM 1000UF 20 35V SMD |
| Manufacturer | Nichicon |
| Series | UUG |
| Part Status | Active |
| Capacitance | 1000µF |
| Tolerance | ±20% |
| Voltage - Rated | 35V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1A @ 120Hz |
| Ripple Current @ High Frequency | 1.15A @ 10kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | 0.673" L x 0.673" W (17.10mm x 17.10mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
