Product Introduction
TOP254PN
- Part Number
- TOP254PN
- Manufacturer/Brand
- Power Integrations
- Description
- IC OFFLINE SWIT PROG OVP 8DIP
- RoHs Status
- Lead free / RoHS Compliant
- Series
- TOPSwitch®-HX
- Quantity
- 712pcs Stock Available.

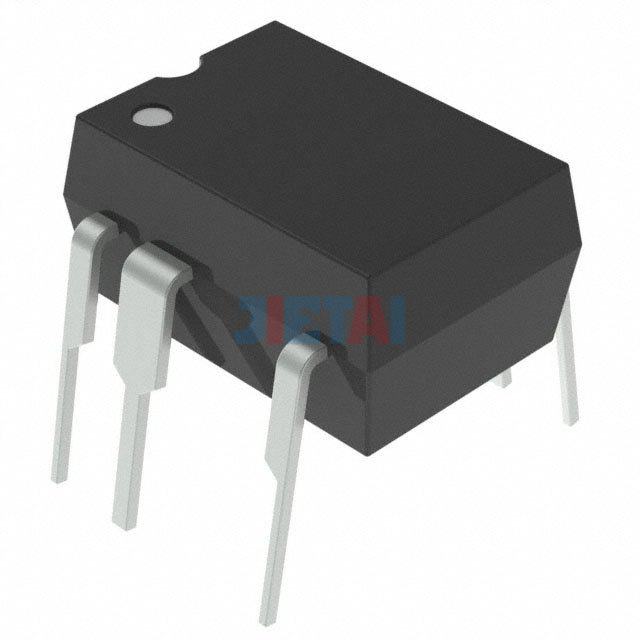

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | TOP254PN |
| Datasheet | TOP254PN datasheet |
| Description | IC OFFLINE SWIT PROG OVP 8DIP |
| Manufacturer | Power Integrations |
| Series | TOPSwitch®-HX |
| Part Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 78% |
| Frequency - Switching | 66kHz |
| Power (Watts) | 28W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | DIP-8C |
| Mounting Type | Through Hole |
