Product Introduction
12226-8200-00PL
- Part Number
- 12226-8200-00PL
- Manufacturer/Brand
- 3M
- Description
- CONN RCPT 26POS R/A SOLDER
- Category
- D-Shaped Connectors - Centronics
- RoHs Status
- Lead free / RoHS Compliant
- Series
- 122, Shrunk D Ribbon (SDR)
- Quantity
- 271pcs Stock Available.

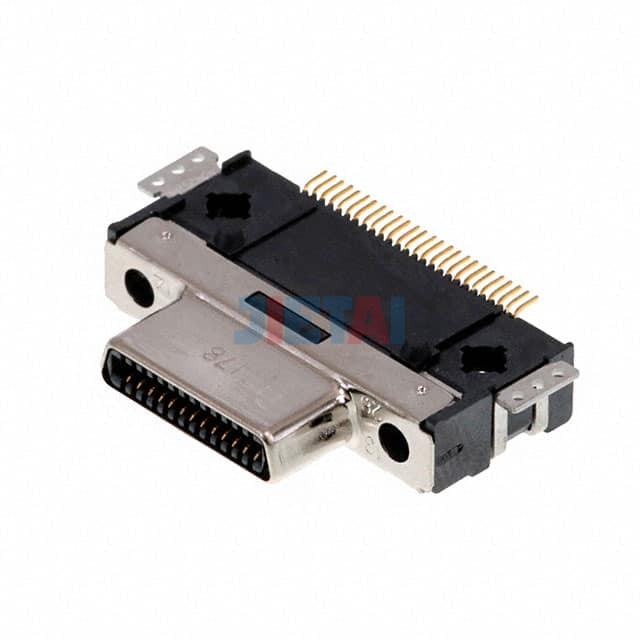

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | 12226-8200-00PL |
| Datasheet | 12226-8200-00PL datasheet |
| Description | CONN RCPT 26POS R/A SOLDER |
| Manufacturer | 3M |
| Series | 122, Shrunk D Ribbon (SDR) |
| Part Status | Active |
| Connector Style | Outer Shroud Contacts |
| Connector Type | Receptacle |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Flange Feature | Mating Side (M2) |
| Type | - |
| Features | - |
| Contact Finish | Gold |
| Contact Finish Thickness | 8.00µin (0.203µm) |
