Product Introduction
TNPW2512560RBETG
- Part Number
- TNPW2512560RBETG
- Manufacturer/Brand
- Vishay Dale
- Description
- RES 560 OHM 0.1 1/2W 2512
- Category
- Chip Resistor - Surface Mount
- RoHs Status
- Lead free / RoHS Compliant
- Series
- TNPW
- Quantity
- 138pcs Stock Available.

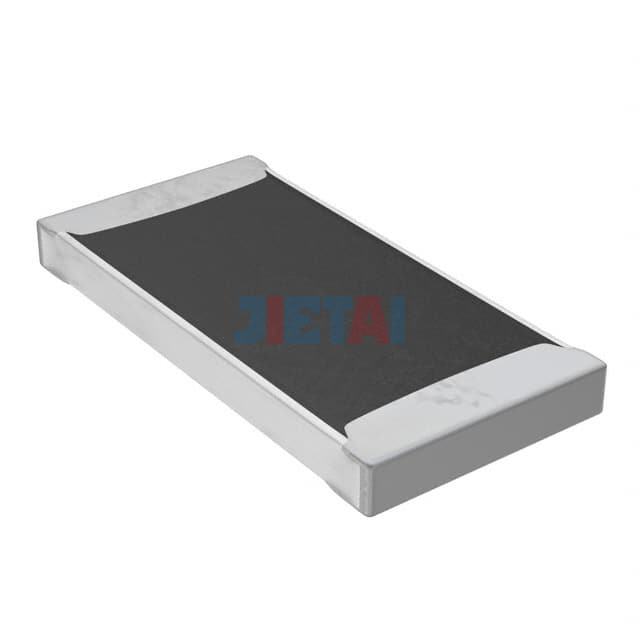

Images are for reference only
See Product Specifications
See Product Specifications
Product Specifications
| Part Number | TNPW2512560RBETG |
| Datasheet | TNPW2512560RBETG datasheet |
| Description | RES 560 OHM 0.1 1/2W 2512 |
| Manufacturer | Vishay Dale |
| Series | TNPW |
| Part Status | Active |
| Resistance | 560 Ohms |
| Tolerance | ±0.1% |
| Power (Watts) | 0.5W, 1/2W |
| Composition | Thin Film |
| Features | - |
| Temperature Coefficient | ±25ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 2512 (6432 Metric) |
| Supplier Device Package | 2512 |
| Size / Dimension | 0.248" L x 0.122" W (6.30mm x 3.10mm) |
| Height - Seated (Max) | 0.030" (0.75mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
